Product Description

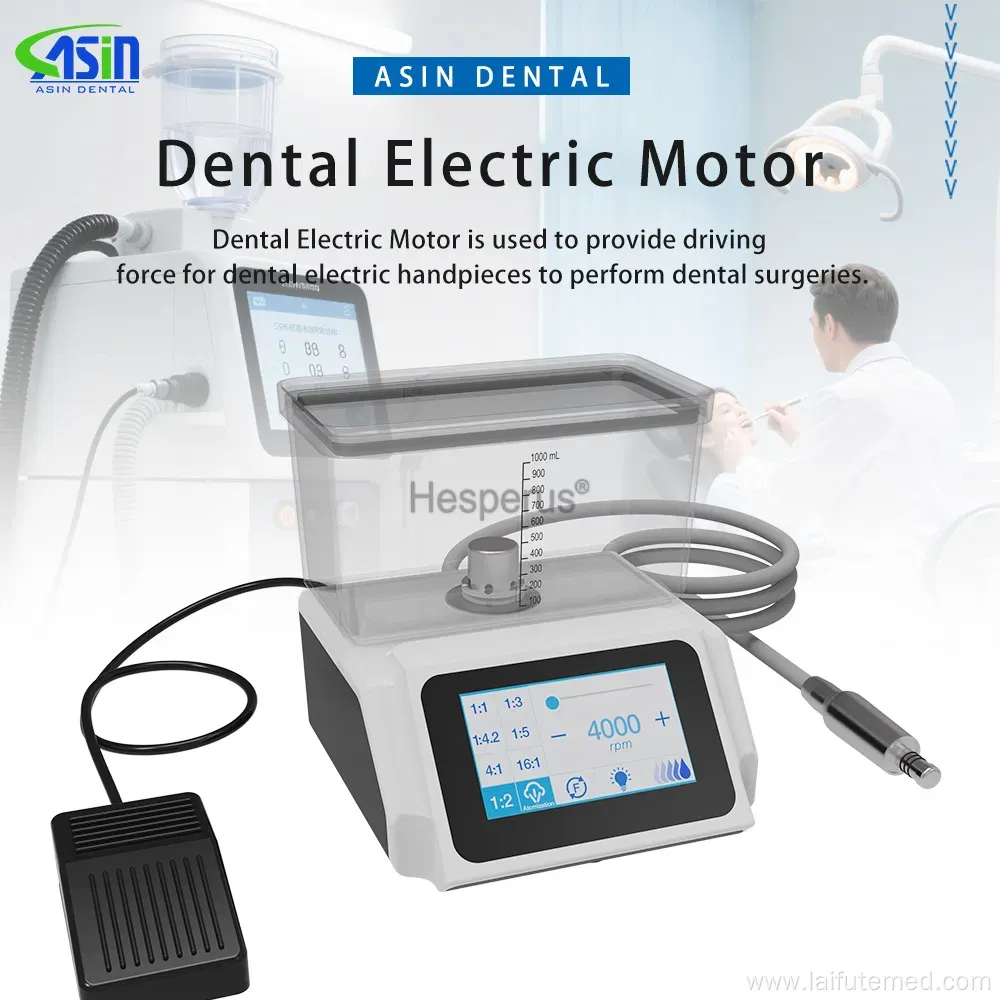

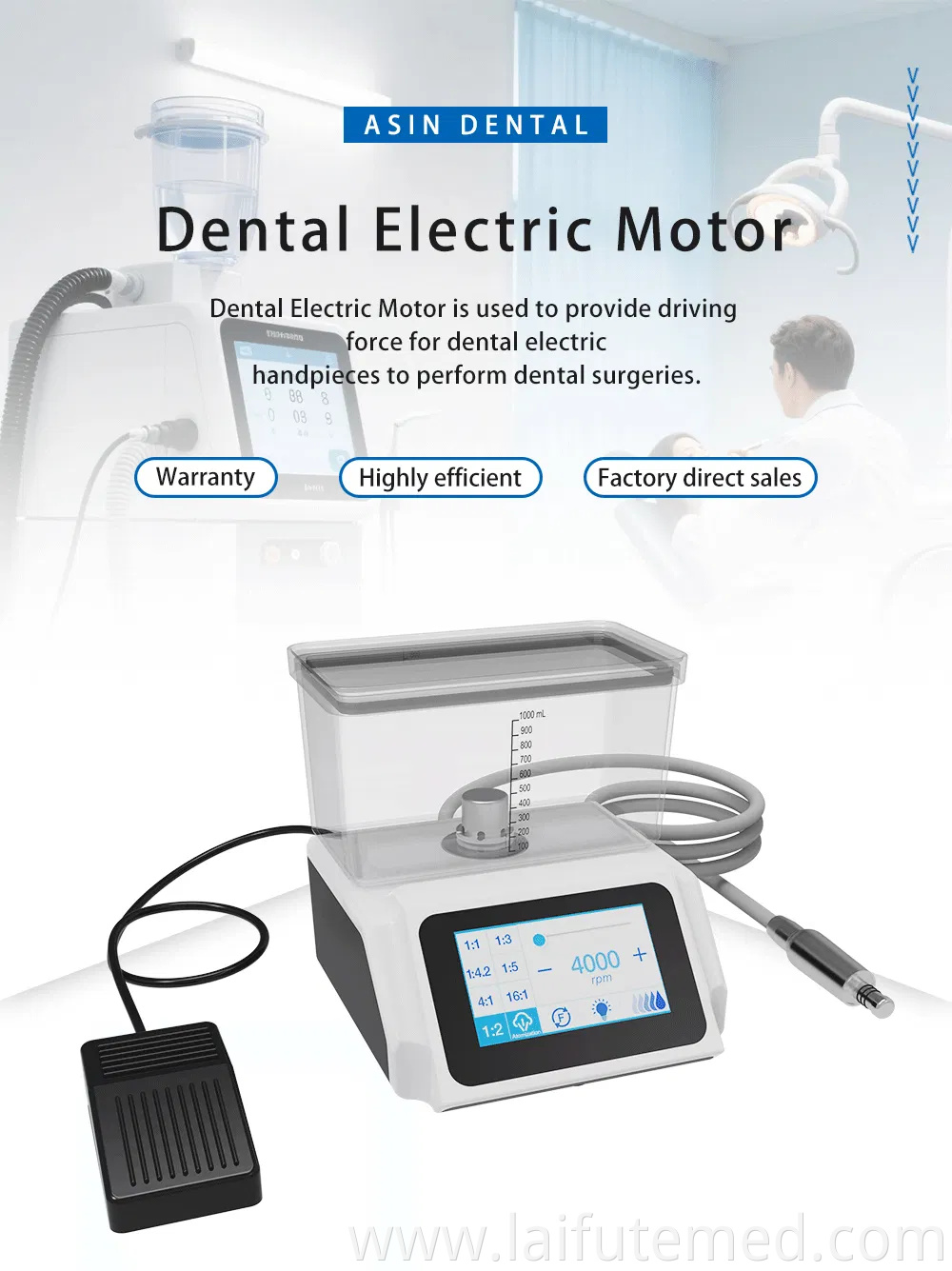

Choose different handpieces for tooth preparation, extraction of impacted teeth, orthopedic surgery, etc., widely used in the fields of dentistry, medical aesthetics, and pets.

Fit for: 1:1, 1:2, 1:3, 1:4.2, 1:5, 4:1, 16:1 contra/straight handpiece.

Packing list: (Handpiece on picture is not including)

• Host *1
• Power supply *1
• Foot pedal *1
• Water tank *1
• Motor *1
• Motor holder *1
• User manual *1

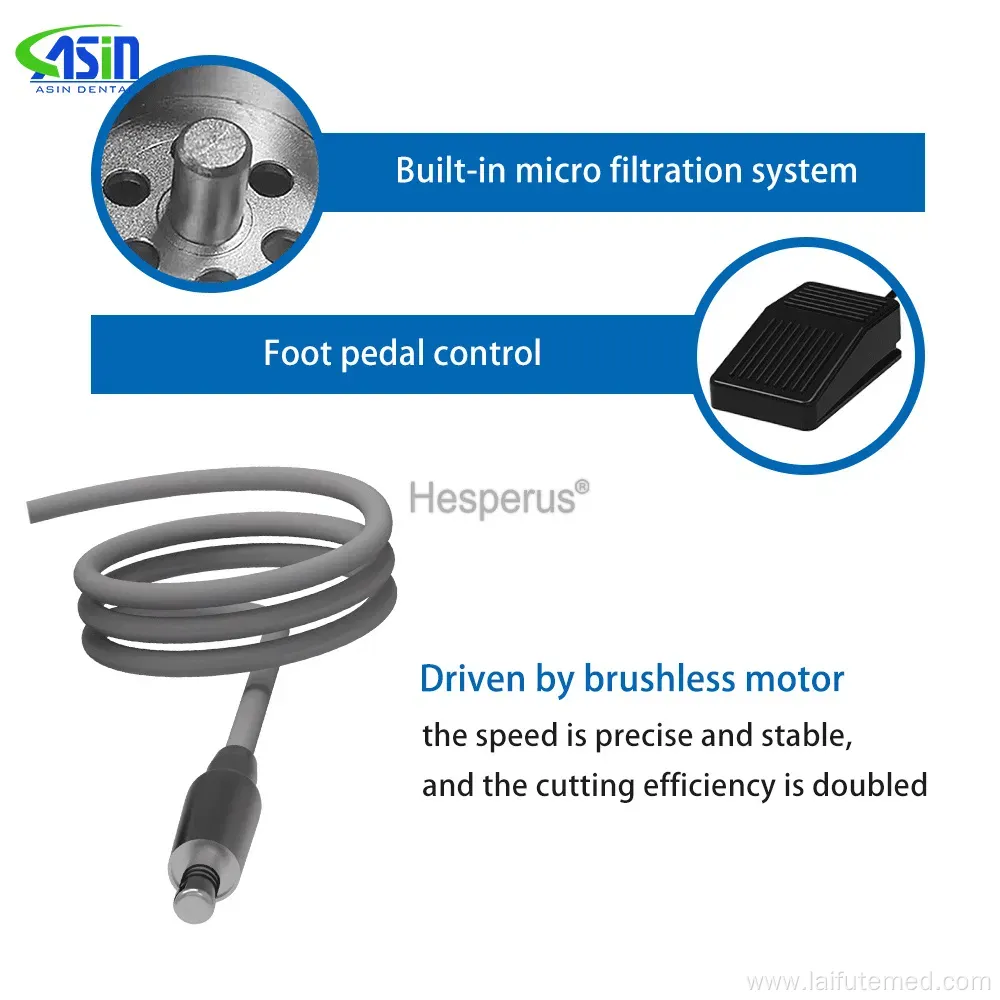

1. Driven by a brushless motor, the speed is precise and stable, doubling the cutting efficiency, making minimally invasive tooth extraction and fine repair more reliable.
2. Low pressure atomizing gas, anti backflow structure, aerosol halving, reducing pain and cross infection. No need for a dental chair to atomize and prevent splashing.

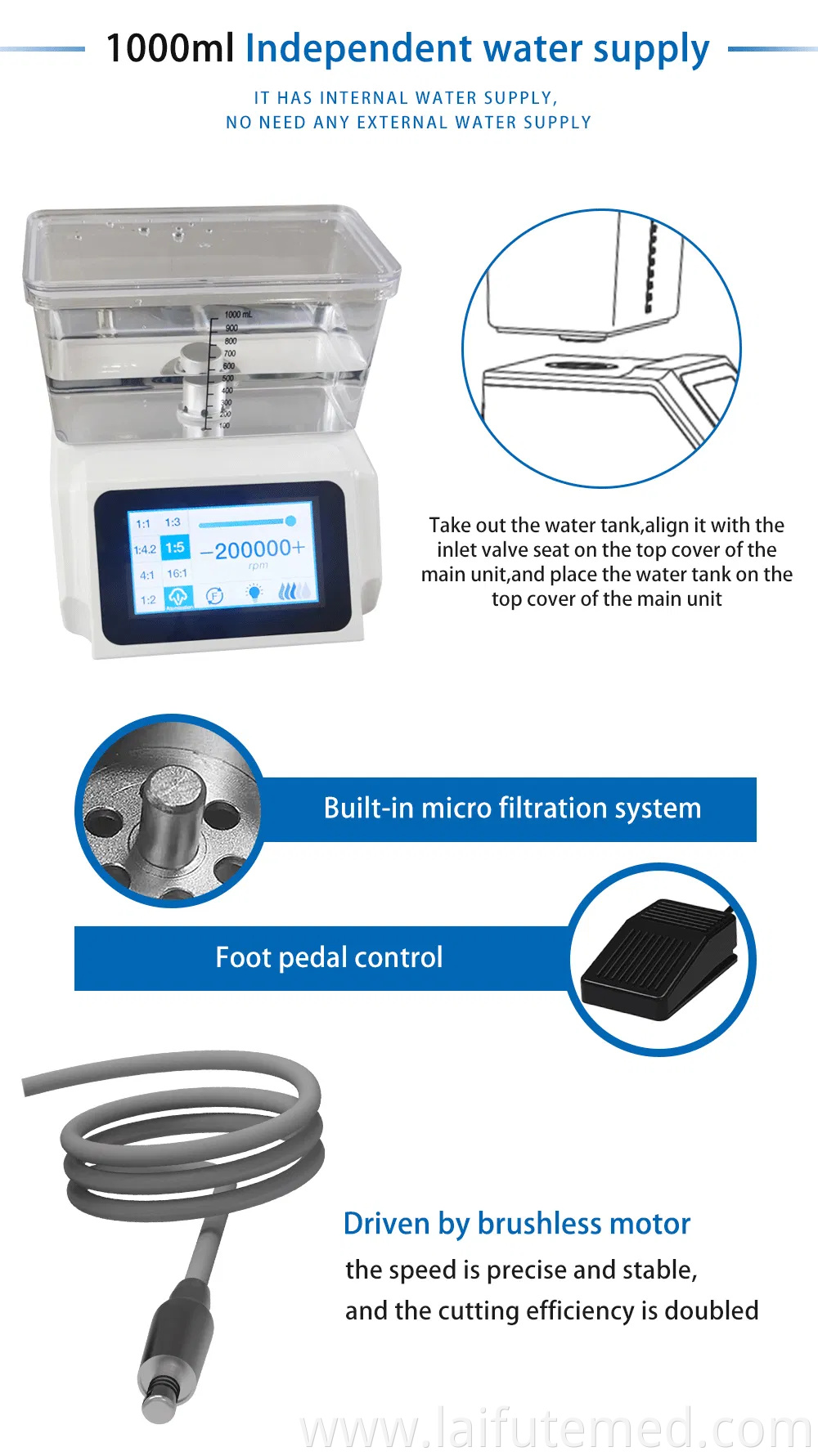

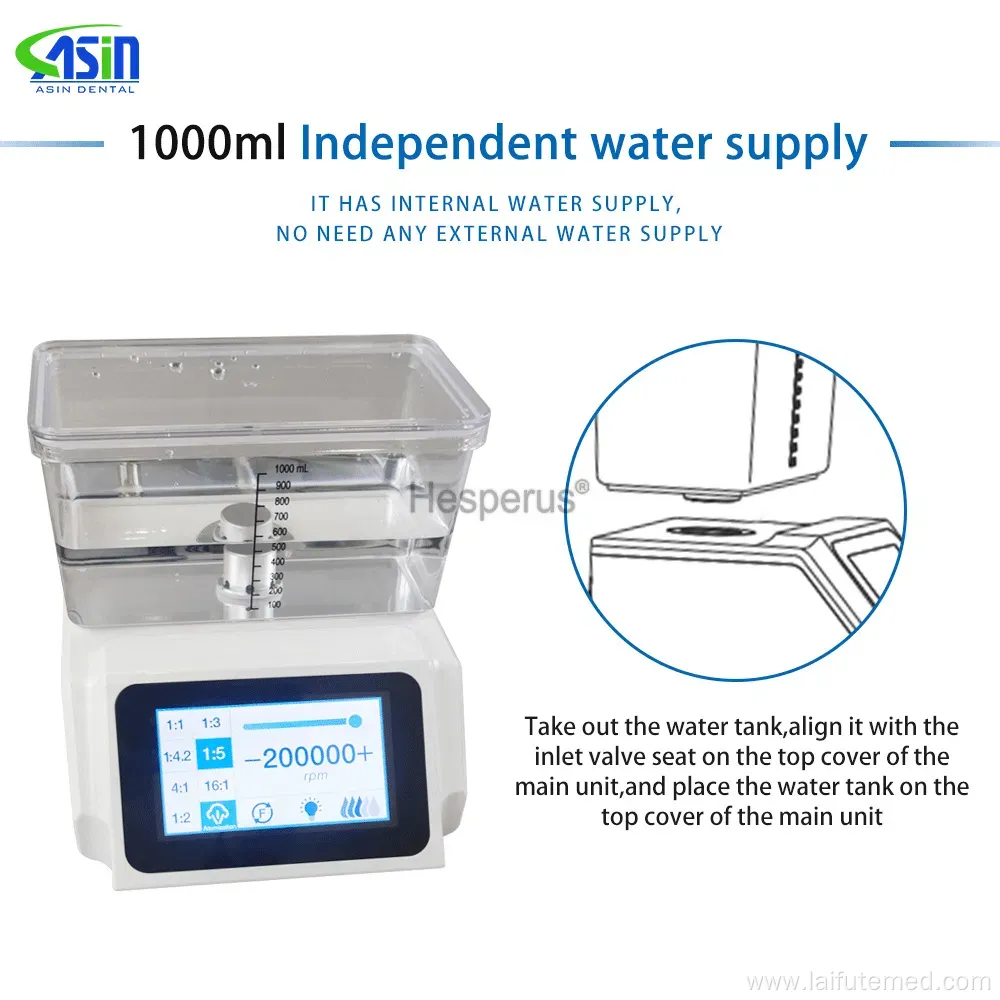

3. 1000ML large capacity water tank with 6-speed water regulation, using sterile water such as distilled water, with lower cost. No need for dental chairs.

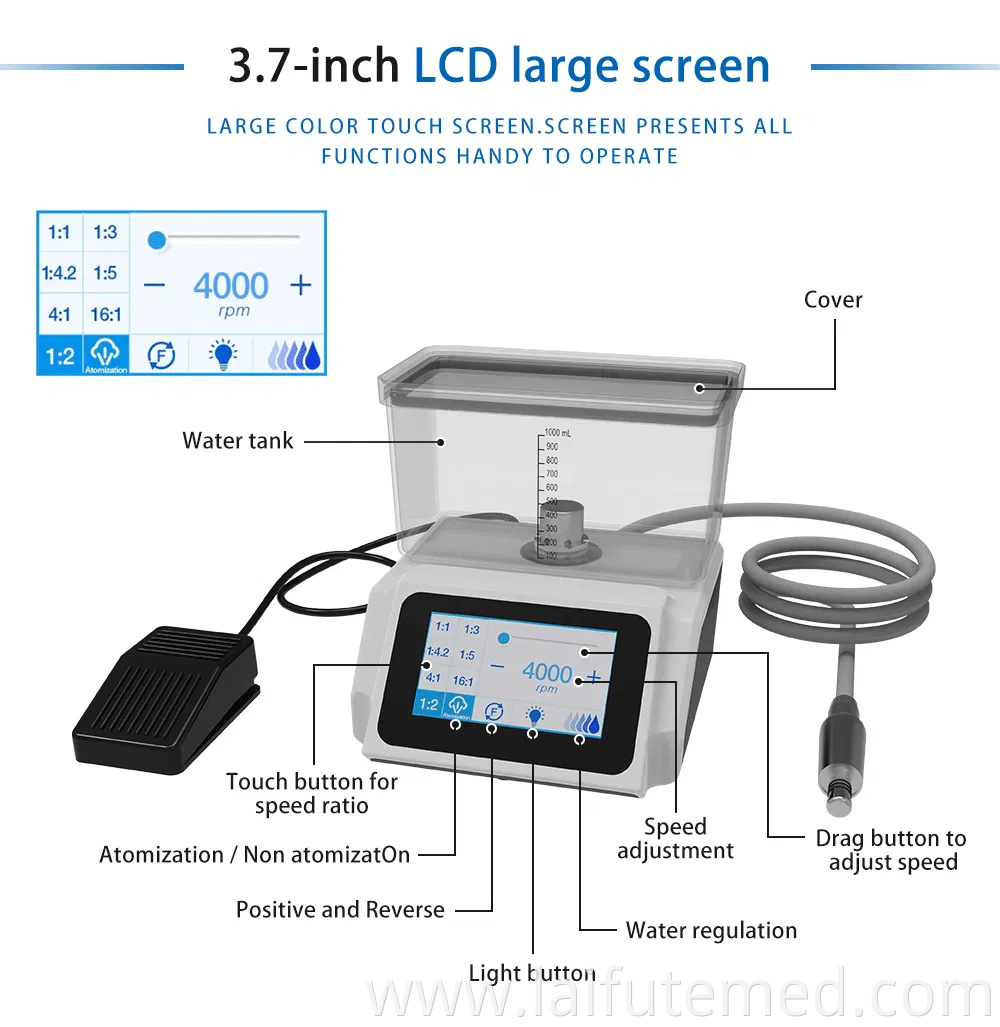

4. 3.7-inch color touch screen, 7 different speeds for one click selection compared to mobile phones, multiple scene applications, easy operation.

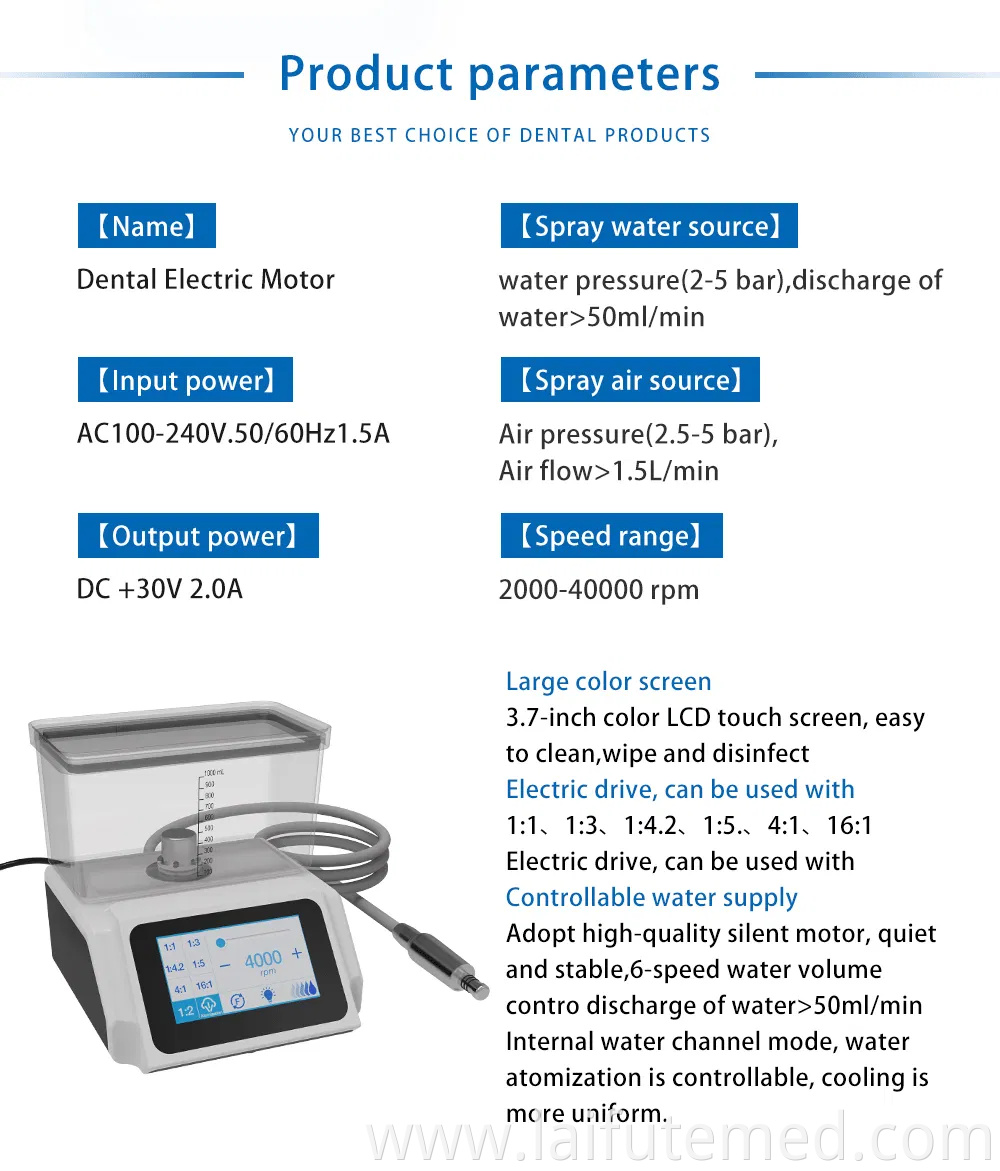

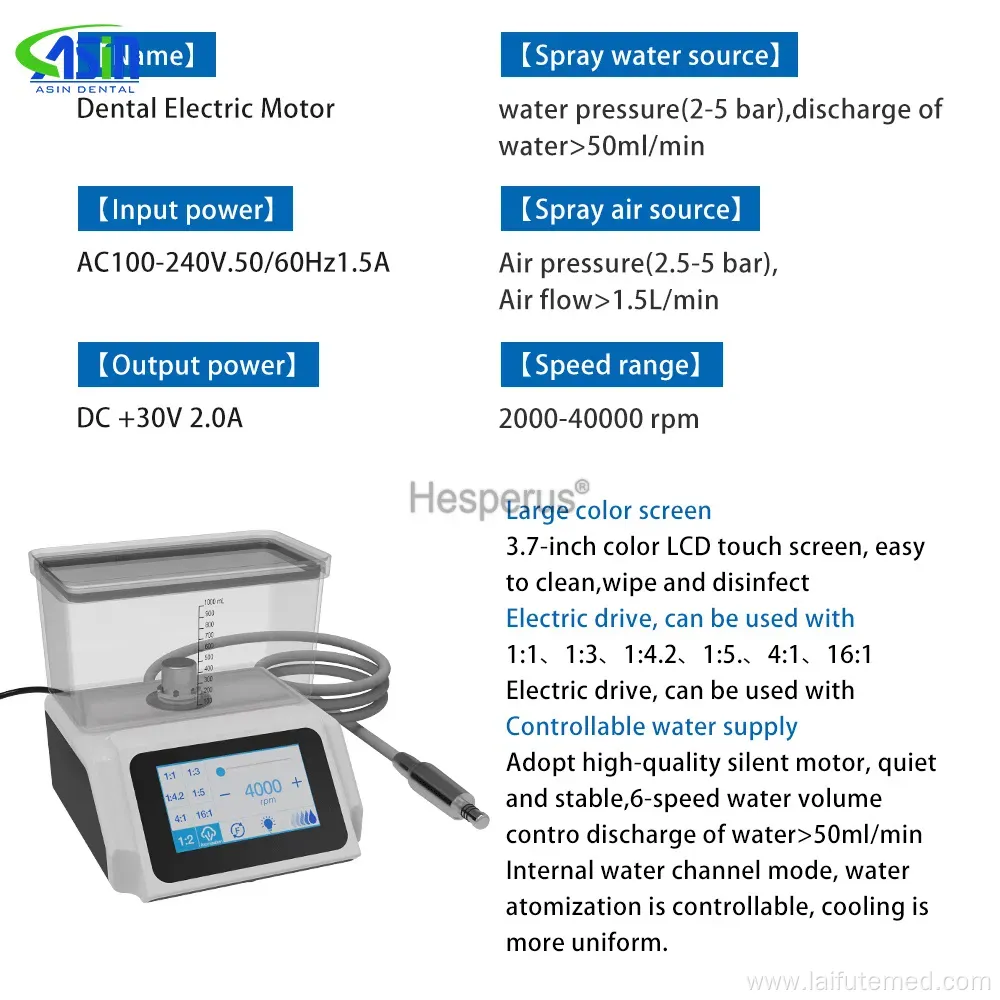

Technical Parameters:

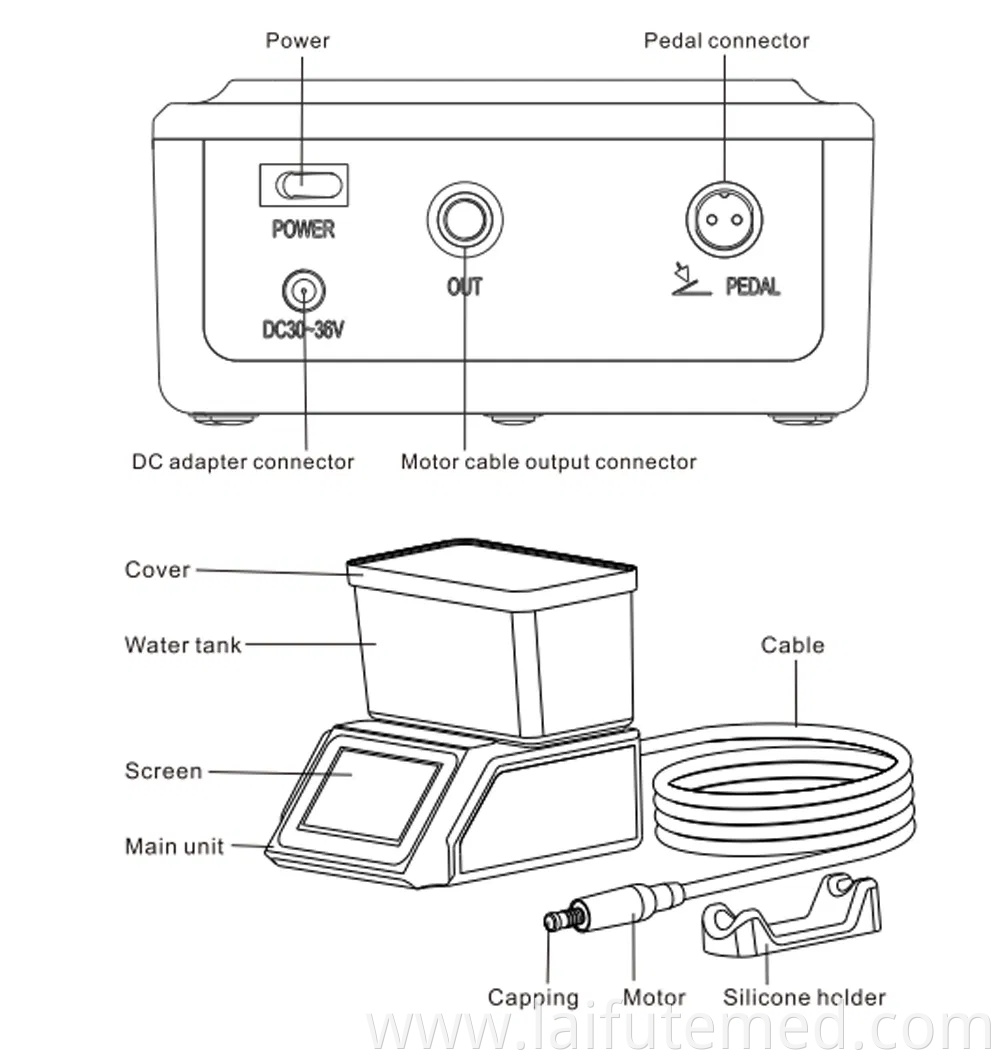

Host

• Power input: AC 100-240V, 50/60Hz, 1.5A
• Host input: DC 30V, 2A

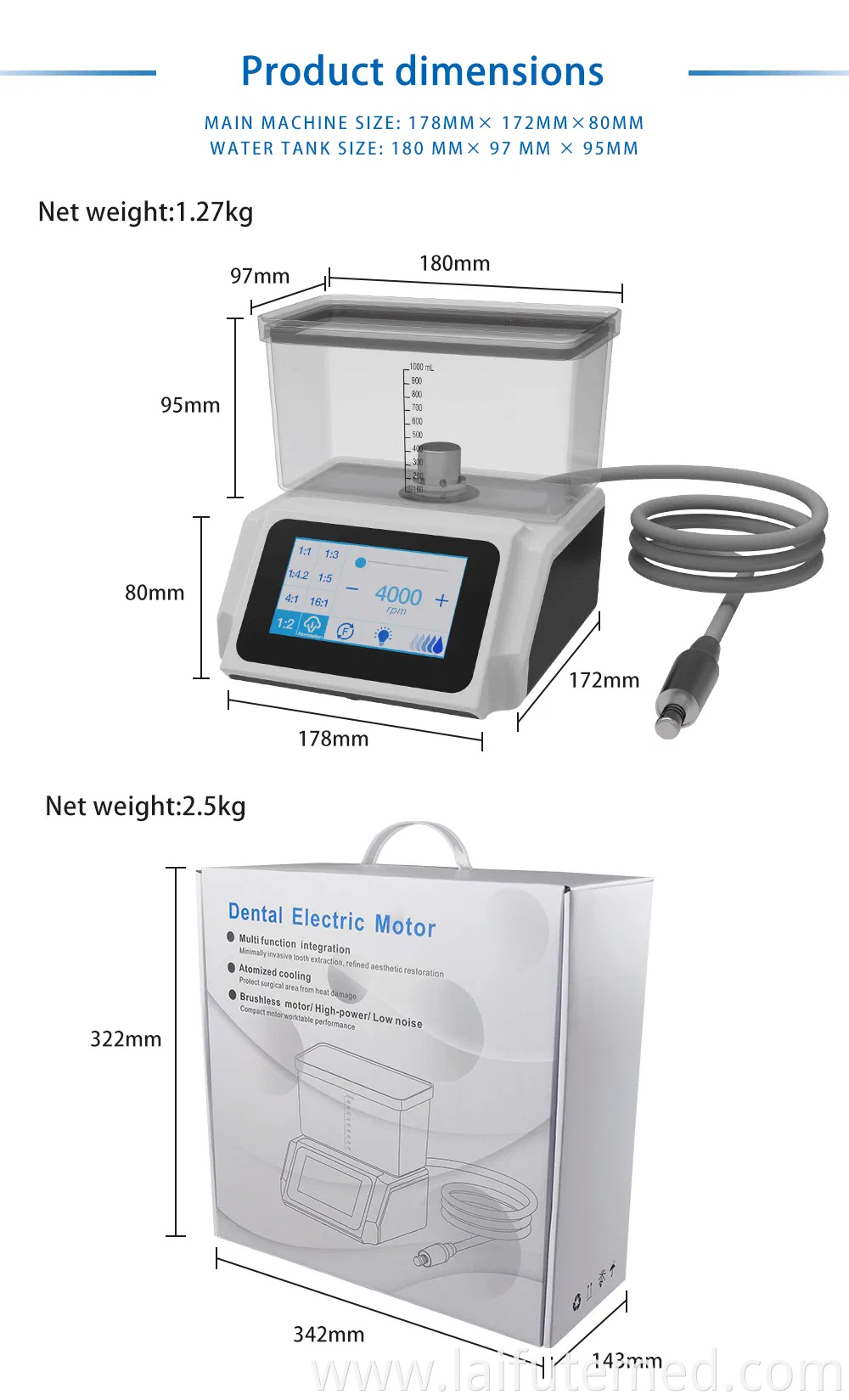

• Host size: 178mm × 172mm × 80mm

Water Tank

• Size: 180 mm × 97 mm × 95 mm
• Capacity: 1000mL

Water Spray

• Source: water pressure 2-5 bar, outlet flow rate >50ml/min
• Air source: air pressure 2-5bar, air flow >1.5L/min

Electrical Machinery

• Speed range: 2000~40000 rpm
• Input voltage: DC 30V
• Size: Diameter ∅ 22.5mm × 80mm
• Cable length: 1.8m

Operating Environment

• a) Temperature: +5 °C ~ +40 °C
• b) Relative humidity: 30% ~ 75%
• c) Atmospheric pressure: 70kPa ~ 106kPa

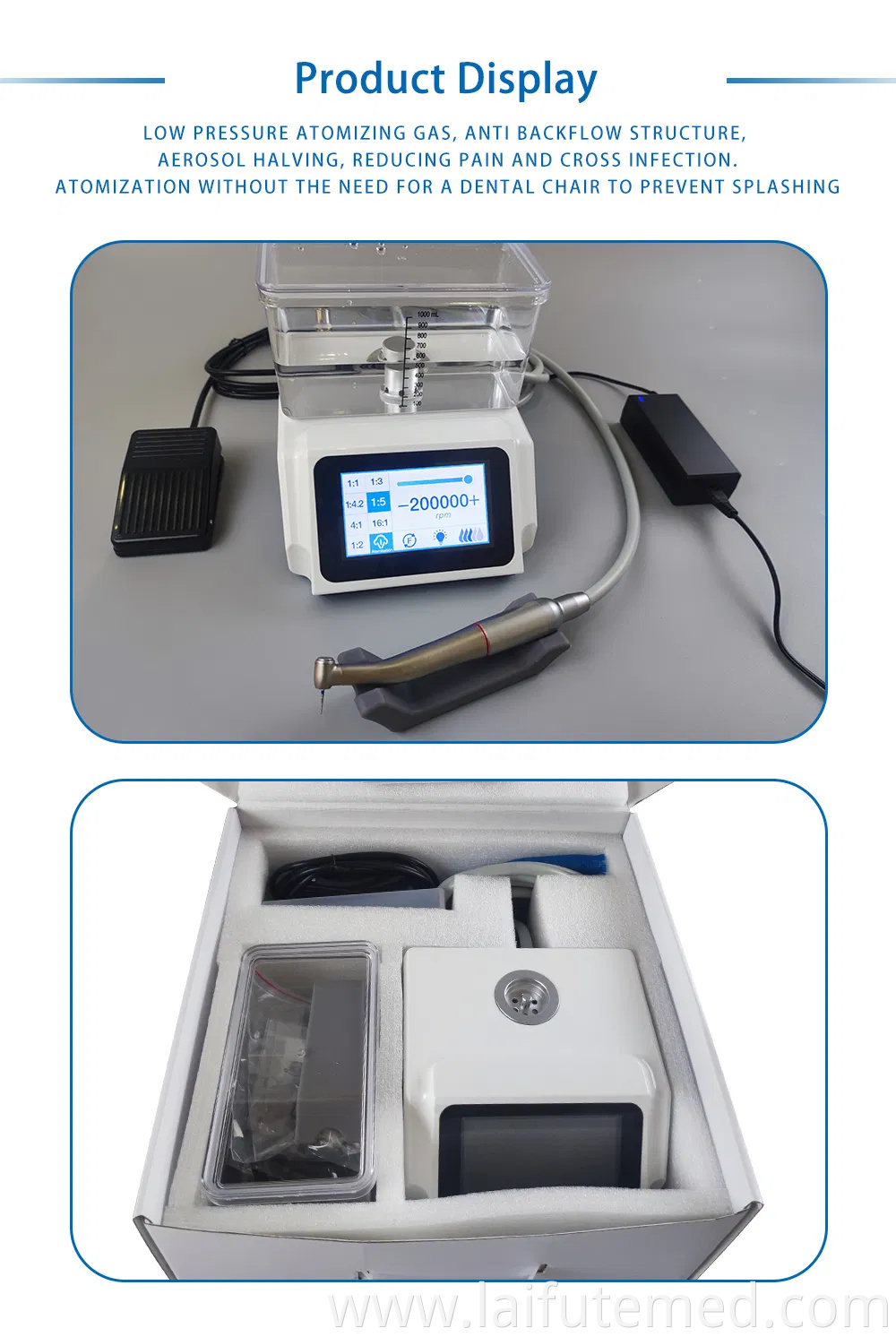

Detailed Photos
