Veterinary Ultrasound Scanning Machine Bw590V

Basic Info

Model NO.: BW590V

LCD Size: 7-Inch

Net Weight: 1.7kg (Incl. Battery)

Image Storage: 420 Images Permanently

WiFi: Yes

Waterproof Probe: Yes

Suitable For: Bovine, Equine, Ovine, Canine, Feline, Goat, Llama

Rechargeable Battery: 5500mAh 7-Hour Operation

Sunshine Cover: Yes

Transport Package: Standard Export Packing

Specification: 202mm(L)*251mm(W)*125mm(D) (Hood inst

Trademark: Bondway

Origin: China

HS Code: 90181210

Production Capacity: 10000PCS/Year

Customization: Available

Customized: Non-Customized

Scale: Medium

Additional Info

Supply Ability: 10000PCS/Year

Product Description

Basic Info.

Model NO. BW590V
LCD Size 7-Inch
Net Weight 1.7kg (Incl. Battery)
Image Storage 420 Images Permanently
WiFi Yes
Waterproof Probe Yes
Suitable for Bovine, Equine, Ovine, Canine, Feline, Goat, Llama
Rechargeable Battery 5500mAh 7-Hour Operation
Sunshine Cover Yes
Transport Package Standard Export Packing
Specification 202mm(L)*251mm(W)*125mm(D) (Hood installed)
Trademark Bondway
Origin China
HS Code 90181210
Production Capacity 10000PCS/Year

Product Description

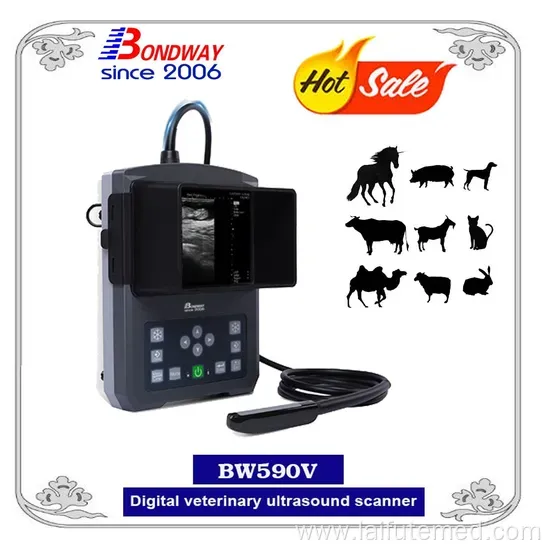

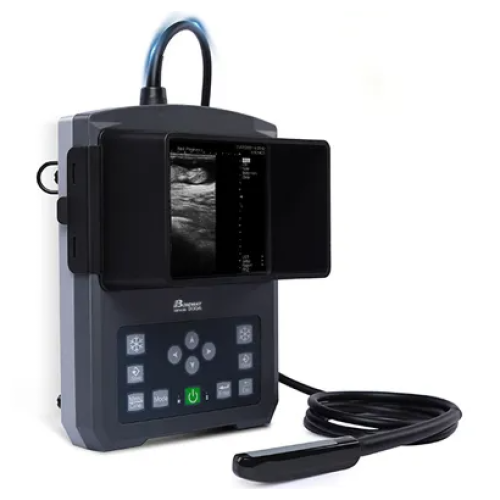

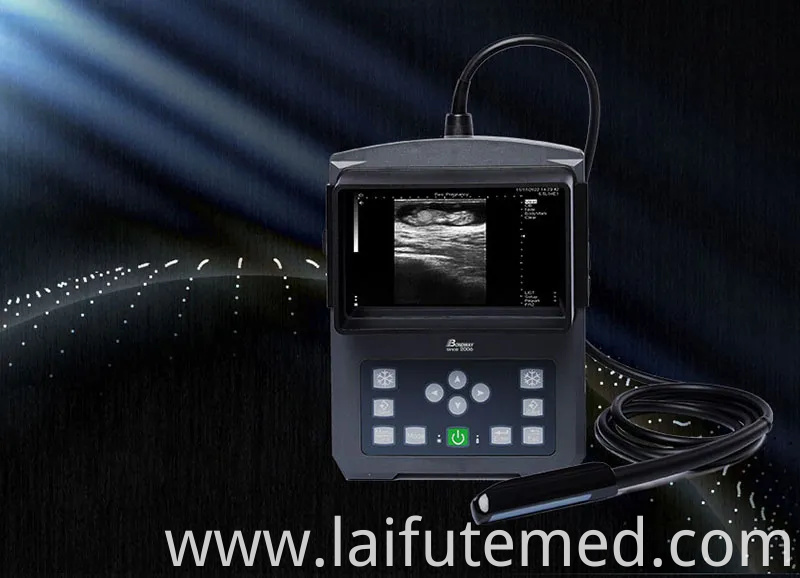

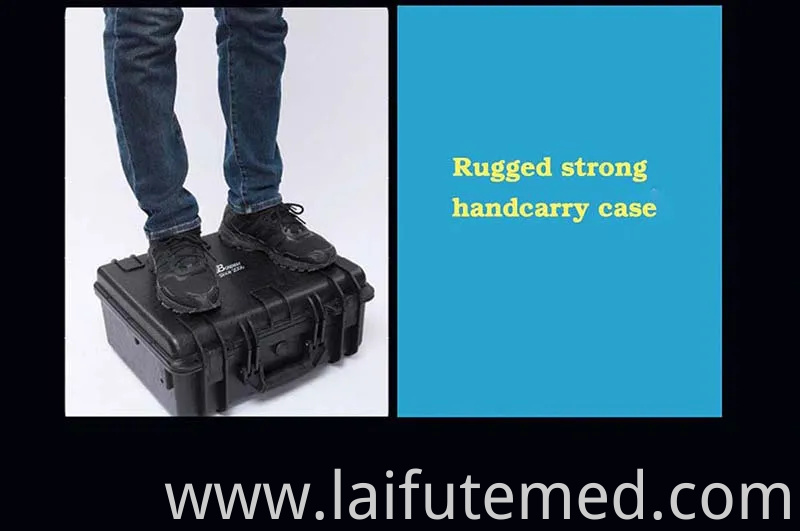

As one NEW digital veterinary ultrasound scanner, BW590V is ideal for diagnostic imaging of a variety of animals such as Equine, Bovine, Llama, sheep, goat, swine, canine, etc. Suitable for veterinary clinics or hospitals, stud farms, cattle or equine breeders, and research institutes, etc. BW590V is compact, lightweight, designed with 7-inch high-resolution color LCD, suitable for outdoor and indoor use. Durable, reliable, affordable, made for the rugged farm environment. BW590V's rechargeable lithium battery (5500mAh) provides over 7 hours of scanning time. With uniquely designed sunshade cover (sunvisor), No longer for you to worry about the ultrasound images on LCD screen that you cannot see clearly especially when you use it outdoor in bright sunny days. It also comes with a durable protective carry case. Now you can do an ultrasound examination anywhere anytime.

Animal Ultrasound Scanning Machine Bw590V Digital Veterinary Diagnostic Ultrasonic Imaging System, Ideal for Veterinary Service Center, Research Institute

Application

* Equine - Reproduction, Tendon & Abdominal, Cardiac, Breeding, etc.
* Farm Animal - Reproduction imaging on Bovine, Swine, Small ruminants and other large animals
* Small animal - Criticare, Abdominal, Cardiac, etc.

Benefits

* Compact design and lightweight: 1.7kg (3.75 lbs)
* High-capacity lithium Battery (5500mAh) supporting 7-hour operation.
* sunshine cover, suitable for outdoor use under strong sunshine.
* Multiple methods for holding the machine: hand-held, chest hanging, etc.

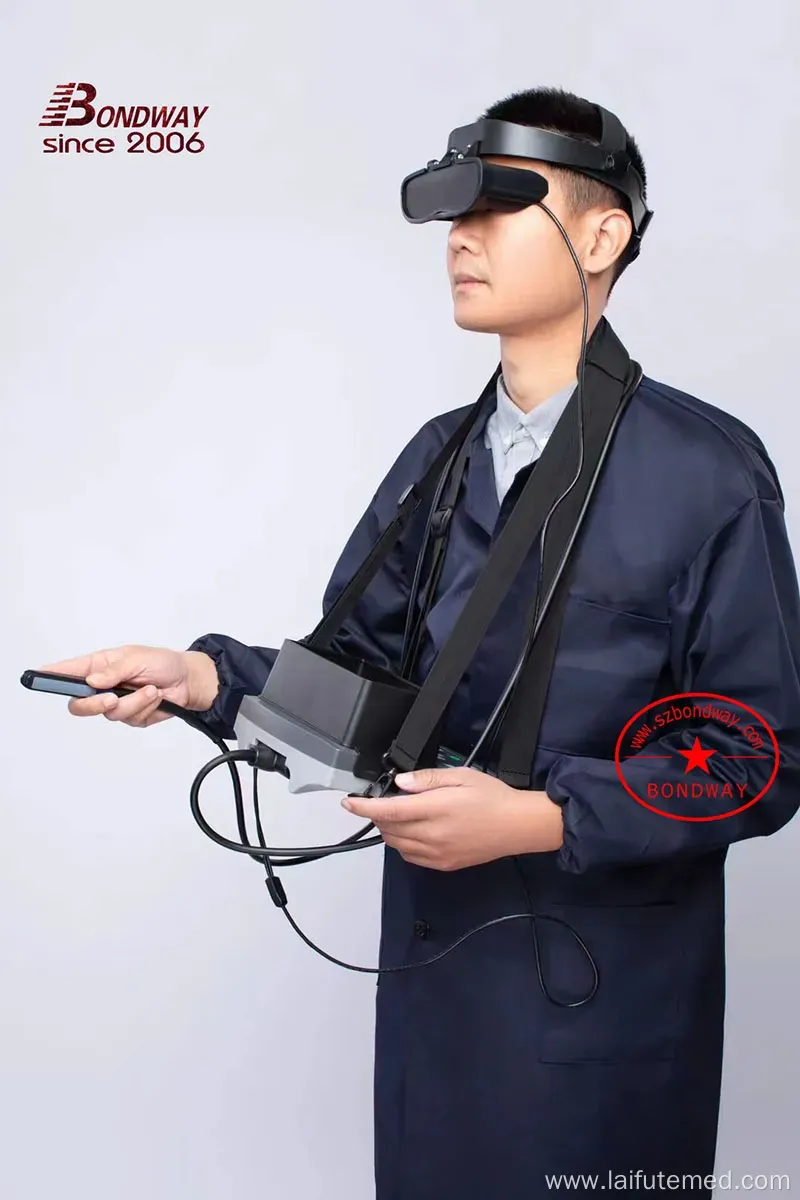

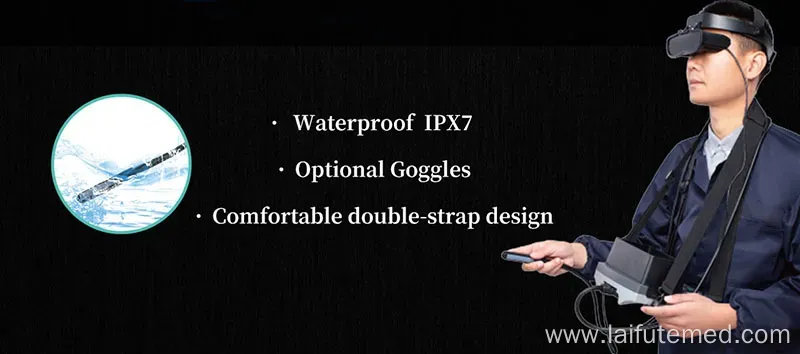

* Goggle (also named video glass) available as optional part, convenient for outdoor use
* Image storage: one-click-saving, 420-frame permanent image storage
* WIFI connection APP software to easy realize the transmission and management of images and data

Features

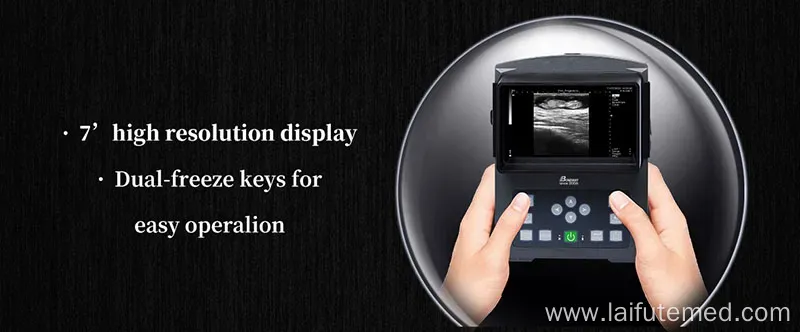

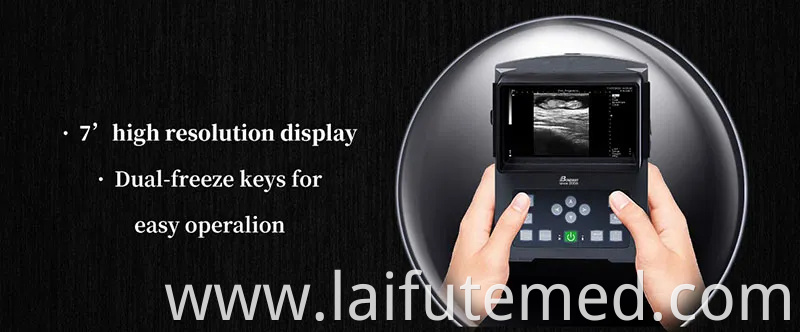

* Display: 7.0 inch LCD screen.
* Single probe connector configuration, with automatic identification technology, supports a variety of probe options.
* Body mark: 31 body marks with probe position.
* Scan mode: Electronic convex array, linear array.
* Five Display modes: B, B/B, 4B, B/M, M.
* Frequency: 3.5/4.0/6.5/7.5MHz.
* Gain Range: 0~127dB.
* Intelligent TGC control: Far and near field adjustment; Near field: 0~-31dB; Far field: 0~31dB.
* Dynamic adjustment range: 27~90dB.
* Gray: Level 256.
* Frequency conversion of the probe: 4 level frequency conversion (conversion point depending on the different probes).
* Frame correlation: Four-level adjustment: 0, 1, 2, 3.
* Image processing(IP): Four-level adjustment: 0, 1, 2, 3.
* Edge enhancement: Four-level adjustment: 0, 1, 2, 3.
* Designed with partial enlargement and partial color enhancement.
* 8 depth ranges, the maximum display depth is 200mm.
* With the image up and down, left and right flip function.
* Color selection: 8 color image conversion (including a black and white image).
* Image filters: 2 types.
* Image storage: One-click-saving, up to 420 images permanently stored.
* Cine Loop: 256 frames.
* Automatic ruler: display the back-fat ruler, easy for visually check, focus on a quick back-fat thickness measurement.
* Display pregnancy test results for easy recording and data management.
* Equipped with image parameter recovery function.
* General measurements: distance, perimeter, area, volume, cycle, heart rate, slope.
* Obstetric measurement: gestational age and expected date of birth for Bovine, Equine, Ovine, Canine, Feline, Goat, Llama, Swine.
* The function of measuring and calculating the lean meat percentage of pigs.
* Obstetric report function.
* Energy saving function.
* Character brightness: The character brightness can be selected among 160, 192, 224, and 255.
* Key tone: ON or OFF.
* Multiple Grid: 8 states (no grid, line grid, dot grid, 10mm pitch dot ruler, 2mm pitch dot ruler, 10mm and 2mm Spacing point scale, grid with 1mm spacing longitudinally, grid with 5mm spacing longitudinally, grid with 10mm spacing longitudinally at different depths).
* Checking list: record the pregnancy status of each check, convenient for batch management of the data; Maximum storage of 200 checklists.
* Dual-standard TV output: PAL/ NTSC, can be connected to a video recorder.
* WIFI connection APP software to easy realize the transmission and management of images and data.
* WIFI types: 802.11g/20MHz/2.4G.
* Support platform and carrier for the APP software: mobile phones and tablet computers with Android system (support version 10.0 and above).
* Dual power supply. Power supply: 100-240V~±10% 1.2-0.6A Frequency: 50-60Hz±1Hz.
* Large-capacity rechargeable lithium battery (5500mAh), at least 7-hour operation.
* Dimension: 202mm (length) × 251mm (width) × 125mm (height) (Size for Hood installed).
* Net weight: 1.7kg (excluding accessories).
