Overview

Basic Info.

• Model NO. UMCT122
• Certification CE, FDA, ISO13485
• Group Human
• Number of Slices 512 Slices
• Slice Thickness 0.2 mm
• Field of View (Fov) 30 Cmx30 Cm
• Fov-Z >80 Cm
• Patient Opening Diameter 800 mm
• Radiation Dose 20-500usv
• Scan Time Routine 25s, Minimum 8s
• Kv Selections 80, 90, 100, 110, 120 Kv
• Ma Selections 10 Ma, 20 Ma
• Frame Rate (Dynamic/Static Imaging) 45 Fps
• Pixel Matrix 3072X3072
• Gantry Size 2568 mm X1653 mm X1688 mm
• Transport Package Carton
• Specification Standard Export Carton Package
• Trademark Umy
• Origin Guangdong, China
• HS Code 9022120000
• Production Capacity 2000 Sets/Month, 30,000 Units Per Year

Product Description

Product Overview

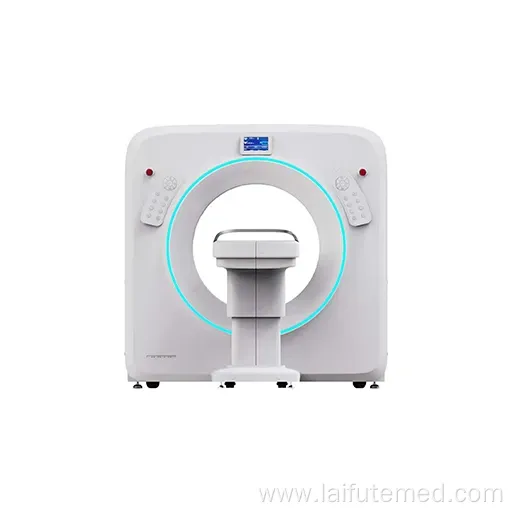

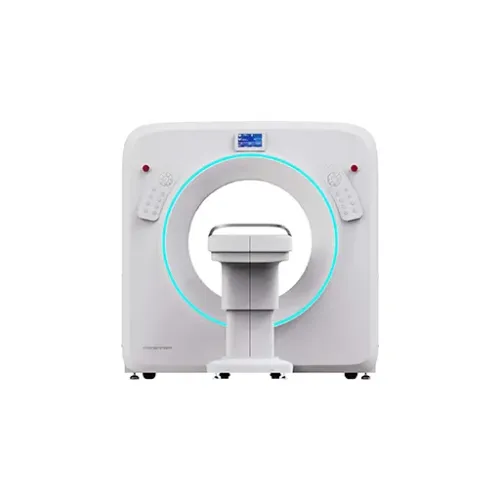

The 512 Slice CBCT is a state-of-the-art veterinary medical imaging device designed to deliver high-quality, detailed images for accurate diagnosis and treatment planning. With its advanced features and user-friendly design, it is suitable for a wide range of clinical applications, particularly for large animals.

Key Features

• 512 Slices
• High Performance: Delivers high-quality images with exceptional detail.
• 3D Imaging: Single rotation captures 512 layers of images, enabling precise 3D reconstruction.
• Large Diameter: 800 mm patient opening, ideal for large animals.
• Ease of Use: Simple operation with easy anaesthetization and ECG integration.
• Low Radiation Dose
• Safe Scanning: Radiation dosage ranges from 20-500µSv, which is only 1/200 to 1/60 of conventional CT scans.
• Wide Clinical Use: Suitable for various diagnostic applications with no image distortion.
• Advanced Imaging Capabilities
• Ultra-Thin Slices: 0.2 mm slices for detecting small lesions and improving the detection rate of minor infections.
• High Spatial Resolution: Excellent for examining complex bone structures and small blood vessels.
• Large Field of View (FOV): 30 cm FOV allows for single-scan imaging of large organs, reducing the need for multiple scans and minimizing anaesthesia risks.
• Compact Design
• Space-Saving: The device occupies only 6 square meters, making it ideal for clinics with limited space.
• Multiple Imaging Modes
• CT Imaging: High-resolution 3D imaging.
• Dynamic DR: Real-time imaging for dynamic studies.
• Static DR: High-quality static images.
• Dental Panoramic: Comprehensive dental imaging.
• DSA (Digital Subtraction Angiography): Enhanced vascular imaging.

Smart Workflow

Registration and Scanning Mode

• Quick Registration: Streamlined patient setup.
• Optimized Settings: Preset exposure doses and algorithm curves for efficient scanning.
• User-Friendly: Well-designed process for quick and easy testing, improving workflow efficiency.

Post-Processing Mode

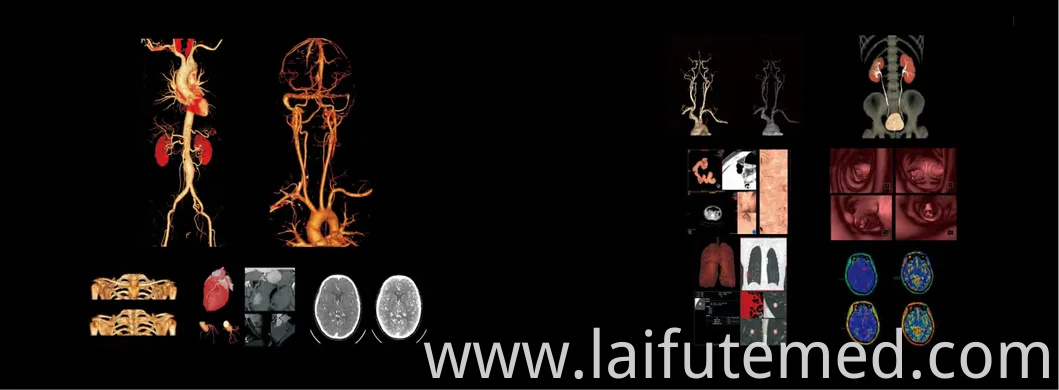

• CT Model: Includes advanced 3D reconstruction software (MPR, CPR, MIP, VR).
• DR Model: Features 11 clinical measurement tools (VHS, TPLO, TTA, HIP) for accurate diagnosis.

Clinical Applications

3D Analysis

• Enhanced Communication: 3D imaging facilitates better understanding between pet owners and technicians.
• Tissue Selection: Allows for detailed examination of both soft and bone tissues.

Dental Panorama

• Professional Interface: Offers cross-section and longitudinal section reconstructions, comparable to panoramic and MPR imaging.
• Customizable Images: Adjust thickness, brightness, and contrast for individual images.

Enhanced Scanning

• Contrast Agents: Improve visibility of blood vessels and tissues, aiding in the accurate diagnosis of tumors, vascular lesions, infections, and inflammation.

Bone and Joint Scan

• Detailed Anatomical Information: Essential for diagnosing, evaluating, and treating bone and joint diseases and injuries.
• Surgical Planning: Provides precise data for treatment and surgical planning.

Technical Specifications

CT Scan Parameters

• Slice Thickness: 0.2 mm
• FOV: 30 cm × 30 cm
• FOV-Z: >80 cm
• Scan Time: Routine 25s, Minimum 8s
• kV Selections: 80, 90, 100, 110, 120 kV
• mA Selections: 10 mA, 20 mA

Dynamic/Static Imaging Parameters

• Large FOV: 43 cm × 45 cm
• Frame Rate: 45 fps
• kV Range: 40-130 kV
• mA Range: 10-200 mA
• Pixel Pitch: 133 µm
• Pixel Matrix: 3072 × 3072

Gantry Parameters

• Gantry Size: 2568 mm × 1653 mm × 1688 mm
• Patient Opening: 80 cm
• Focus-ISO Center Distance: 540 mm
• Ambient Lighting: Four-color ring light effect
• Positioning: Laser positioning
• Mobility: Mobile

Workstation Configuration

• System: Windows-based
• Memory: >4 GB
• Storage: 2 TB HDD

This product is designed to meet the highest standards of veterinary medical imaging, offering unparalleled image quality, safety, and ease of use. Whether for routine check-ups or complex surgical planning, the 512 Slice CBCT is the ultimate tool for veterinary professionals.

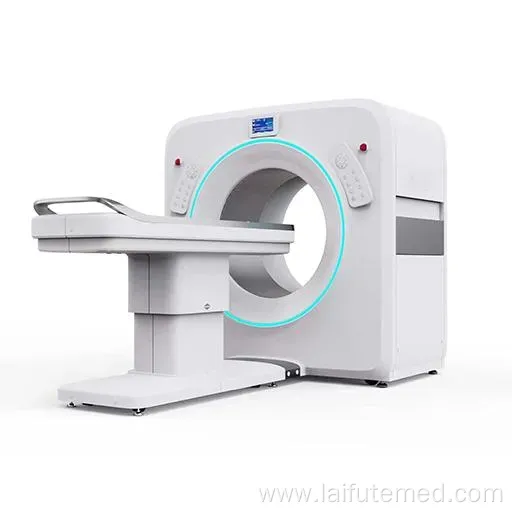

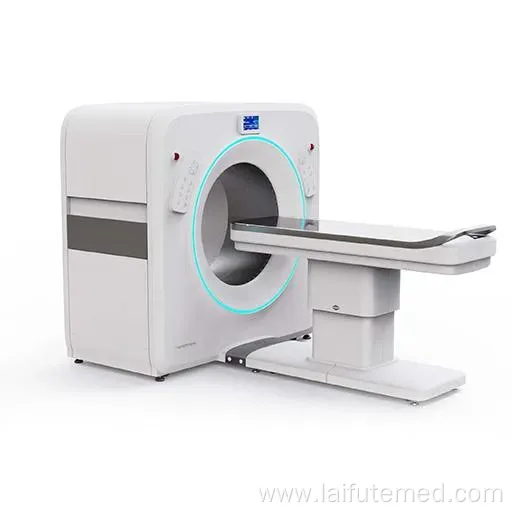

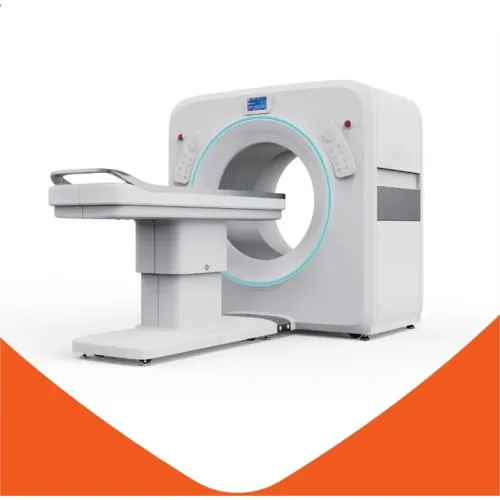

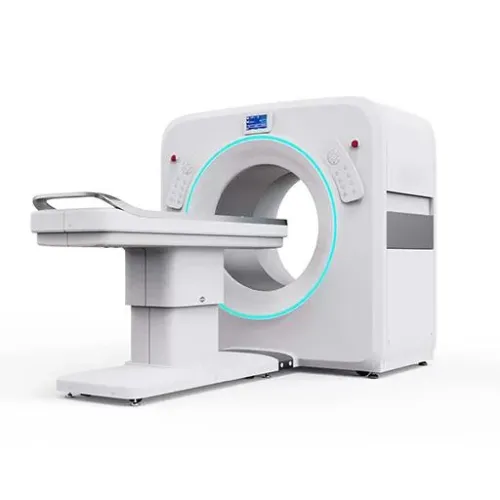

Detailed Photos
